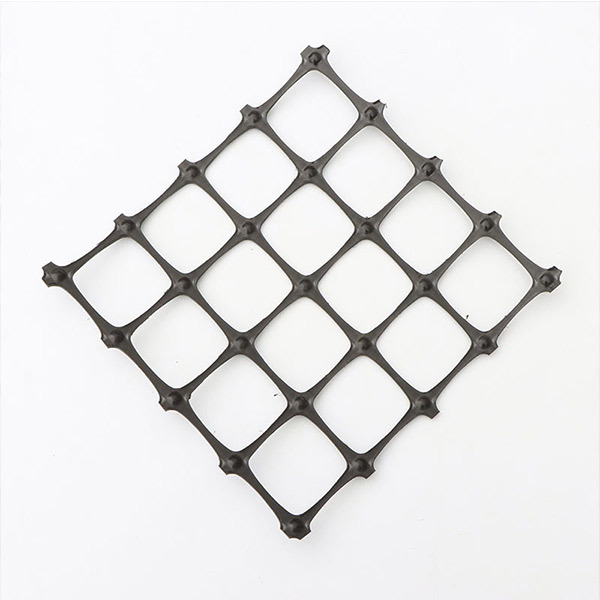

Biaxial Geogrid

PRODUCT DETAILS

DESCRIPTION:

Made from polymer and nanometer carbon black by extrusion method.

Specification: 1.TGSG1515,TGSG2020,TGSG2525,TGSG3030,TGSG3535,TGSG4040,TGSG4545,TGSG5050,TGSG6060 and so on 2.Width from 2m to 6m

Property:

1.Improve roadbed bearing capacity, enlarge road lifetime
2.Prevent road collapse and crack
3.Prevent soil and water loss in slope
4.Could replace steel-plastic geogrid in coal mine

Production standard: GB/T17689-2008
JT/T 480-2002

APPLICATION:

1.Reinforcement in dam and roadbed
2.Slope protection
3.Wall reinforcement
4.Roadbed bearing capacity improvement in airfield, parking lot and wharf

Polypropylene Bidirectional Tensile Plastic Grid
Speciicaton	Tensile strength KN/m	Tensile strength at KN/m	Tensile strength at 5% elongation KN／m	Nominal longation	Products in the range of coal mine
Speciicaton	Tensile strength KN/m	Tensile strength at KN/m	Tensile strength at 5% elongation KN／m	Nominal longation	Fire out time from outer flam（s）	Surfacs resistivity （Ω）
TGSG15-15	≥15.0	≥5.0	≥7.0	≤15.0/13.0	≤3	<1x10^(9)
TGSG20-20	≥20.0	≥7.0	≥14.0
TGSG25-25	≥25.0	≥9.0	≥17.0
TGSG30-30	≥30.0	≥10.5	≥21.0
TGSG35-35	≥35.0	≥12.0	≥24.0
TGSG40-40	≥40.0	≥14.0	≥28.0
TGSG45-45	≥45.0	≥16.0	≥32.0
TGSG50-50	≥50.0	≥17.5	≥35.0
Note:1 table according to GB/T17689-2008 standards,Internal control index of 2 on the table in the elongation is less than or equal to 10%.
