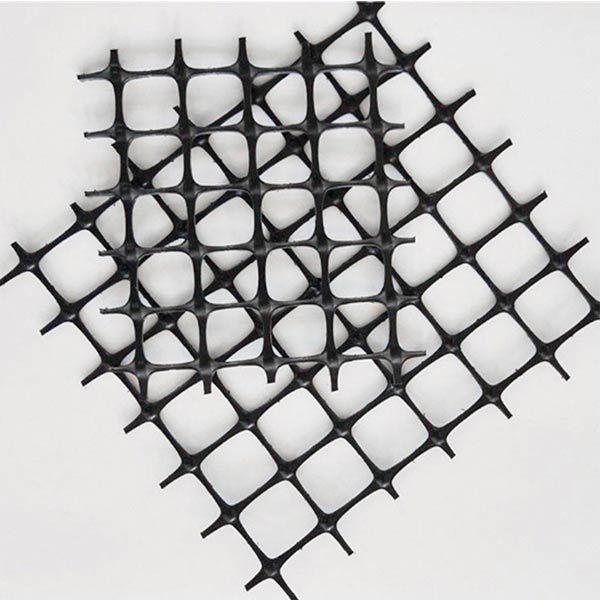

Biaxial steel-plastic compound geogrid

PRODUCT DETAILS

DESCRIPTION:

Br-plastic gauged reinforced composted stick welding purposes, in addition to a wide range of applications processed foundation reinforced foundation engineering and construction roads coastal river embankment slope protection and other projects to enhance soil shear strength to engage in outside or a special and new mine safety net, clear protection for reconstruction of the roadway with coal, mine used to overcome the insecurity.

Product Specifications: GSZ30-30 GSZ150-150 HBGS +400MS HBGS+RE6000MS HBGS-RE7000MS HBGS+RE800MS

Features: High strength, small deformation, uniform structure, easy construction.

Packing: Wide ≤6.1m, length 50m (or according to customer requirements)

APPLICATION:

All kinds of soft soil reinforced handle, to enhance the shear strength of soil, retaining wall reinforcement applied to the old road widened and so on. Also applies to coal mines into the thick coal seams, thick coal seam mining is used to help protect the network when stratified prevent channeling watered mined-out area and roadway.

Technical Indicators of Bidirectional Bonded Geogrid GSZ(JT/T480-2002)
Item Site	GSZ30-30	GSZ40-40	GSZ50-50	GSZ60-60	GSZ80-80	GSZ100-100	GSZ150-150
Tenslie Strength kN/m(LD)	≥30	≥40	≥50	≥60	≥80	≥100	≥150
Tenslie Strength kN/m(TD)	≥30	≥40	≥50	≥60	≥80	≥100	≥150
Elongation Rate(LD TD)％	≤2	≤2	≤2	≤2	≤2	≤2	≤2

Tenslie Strength at 1% elongation(LD) KN／m	≥20	≥32	≥40	≥48	≥63	≥81	≥125


Tenslie Strength at 1% elongation(LD) KN／m	≥20	≥32	≥40	≥48	≥63	≥81	≥125


Max peel strength at welding point N	≥100	≥100	≥100	≥100	≥100	≥100	≥100


Products in the rang of coal mine	Fire out time from outer flam（s）			≤3

	surface resistivityΩ）			<1x10^(9)

Notes:1 Table ofreference on:JT/T480-2008;2.unidirectional(GDZ) and speciaIspecifications according to user requirements.
