DESCRIPTION:

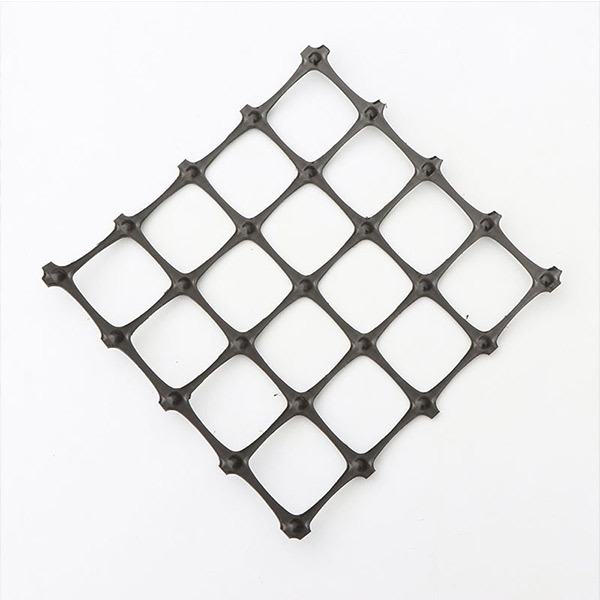

Made from polymer and nano scale carbon black by extrusion technology.
Specification： 1. TGDG35, TGDG50, TGDG80, TGDG120, TGDG160, TGDG260, TGDG300 etc. 2.1m to 3m in roll width
Property：1.Roadbed reinforcement, improve stability and bearing capacity
2.Prevent roadbed from deformation and crack due to roadbed material wash off 3.Retaining wall bearing capacity improvement
Production standard: GB/T17689-2008 JT/T 480-2002
APPLICATION:
1.Roadbed reinforcement in highway
2.Municipal road railway, airport runway
3.Dam reinforcement
4.Garden fence and river bank
5.Retaining wall reinforcement in highway
| Uniaxial plastic geogrid polypropylene (GB/T17689-2008) |
| Speciicaton | Tensile strength KN/m | Tensile strength at 2%elongation KN/m | Tensile strength at 5% elongation KN／m | Nominal longation ％ | Products in the range of coal mine |
|
|
|
| Fire out time from outer flam（s） | Surfacs resistivity （Ω） |
|
|
| TGDG35 | ≥35.0 | ≥10.0 | ≥22.0 | ≤10.0 | ≤3 | <1x10^(9) |
| TGDG50 | ≥250.0 | ≥12.0 | ≥28.0 |
| TGDG80 | ≥80.0 | ≥26.0 | ≥48.0 |
| TGDG120 | ≥120.0 | ≥36.0 | ≥72.0 |
| TGDG160 | ≥160.0 | ≥45.0 | ≥90.0 |
| TGDG200 | ≥200.0 | ≥56.0 | ≥112.0 |
|
|
|
|
|
|
|
| High density polyethylene(GB/T17689-2008)plastic geogrid tension |
| Speciicaton | Tensile strength KN/m | Tensile strength at 2%elongation KN/m | Tensile strength at 5% elongation KN/m | Nominal longation ％ | Products in the range of coal mine |
|
|
|
| Fire out time from outer flam（s） | Surfacs resistivity （Ω） |
|
|
| TGDG35 | ≥35.0 | ≥7.5 | ≥21.5 | ≤11.5 | ≤3 | <1x10^(9) |
| TGDG50 | ≥50.0 | ≥12.0 | ≥23.0 |
| TGDG80 | ≥80.0 | ≥21.0 | ≥40.0 |
| TGDG120 | ≥120.0 | ≥33.0 | ≥65.0 |
| TGDG160 | ≥160.0 | ≥33.0 | ≥65.0 |
| Note:The table reference GB/T17689-2008 standard,special specifications according to user requirements. |
