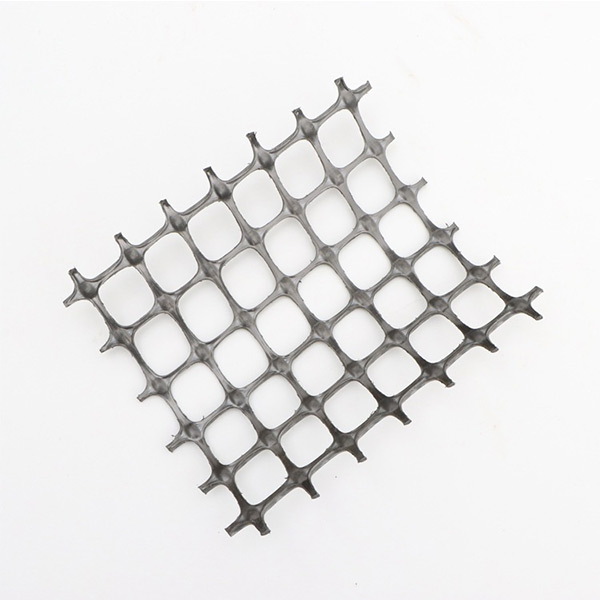

Warp knitting polyester geogrid

PRODUCT DETAILS

DESCRIPTION:

Specification：GSJ30-30 GSJ150-150
Properties：High strength ,homogenous structure, strong anti-deflection etc.

Size of package：Width≤6.0m,length 50m (or According to user requirements)

APPLICATION:

Soft soil foundation reinforcement treatment, improve the load of subgrade. It is applied to roadbed of highway and railway, new and old road lap and so on.

Spcification	GSJ30-30	GSJ35-35	GSJ50-50	GSJ80-80	GSJ100-100	GSJ125-125	GSJ150-150
Limit Tensile Strength KN/m(LD/MD)	≥30	≥35	≥50	≥60	≥100	≥125	≥150
The elongation at nominal Tensile Strength KN/m(LD/MD)%	≤13	≤13	≤13	≤13	≤13	≤14	≤14

Tensile Strength at 2%	≥10	≥12	≥17	≥28	≥35	≥43	≥52
elongation(LD/MD) KN/m
Tensile Strength at 5% elongation(LD/MD)KN/m	≥20	≥24	≥34	≥56	≥70	≥86	≥104

Note: 1.The above table is referring to JT/T480-2002 standard;
